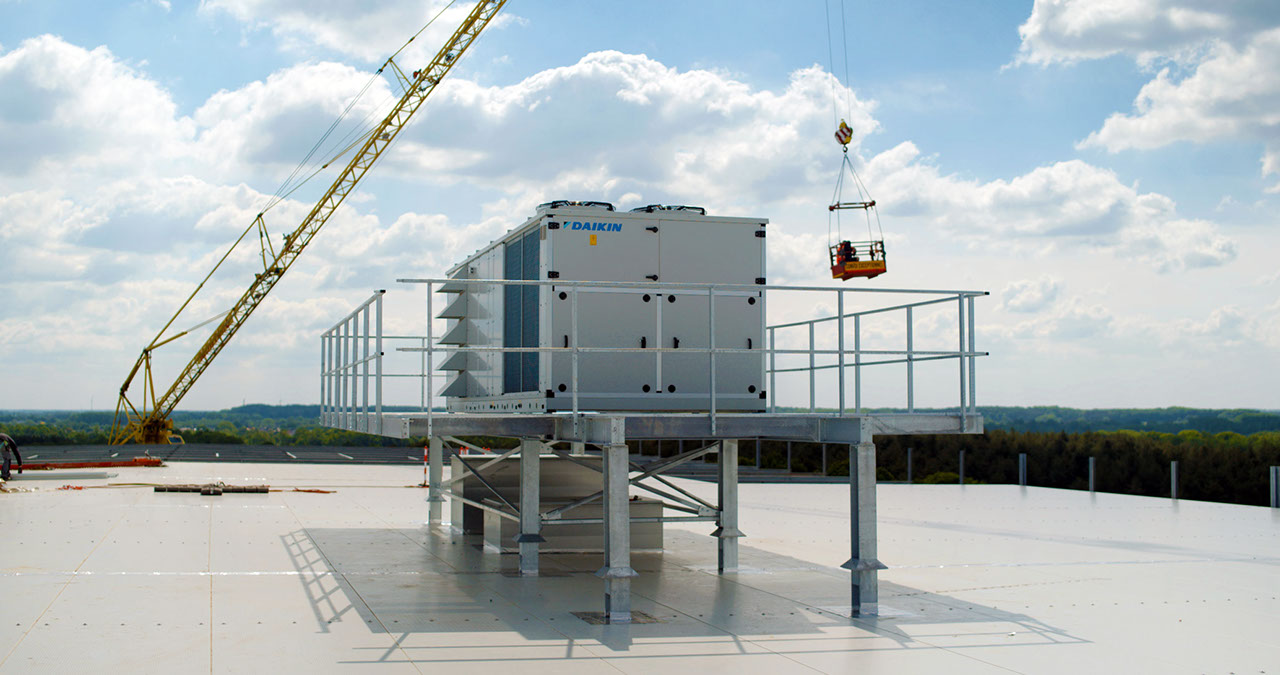

Daikin rooftop series
An extensive package included in all models
- EC plug fans
- flexible air delivery
- Controller
- Clogged filter alarm
- Hydrophilic coated aluminium fins
1. Standard integrated high efficiency EC plug fans
- Static pressure up to 300Pa
- Inverter controlled
- Maintenance free
2. Standard flexible air delivery

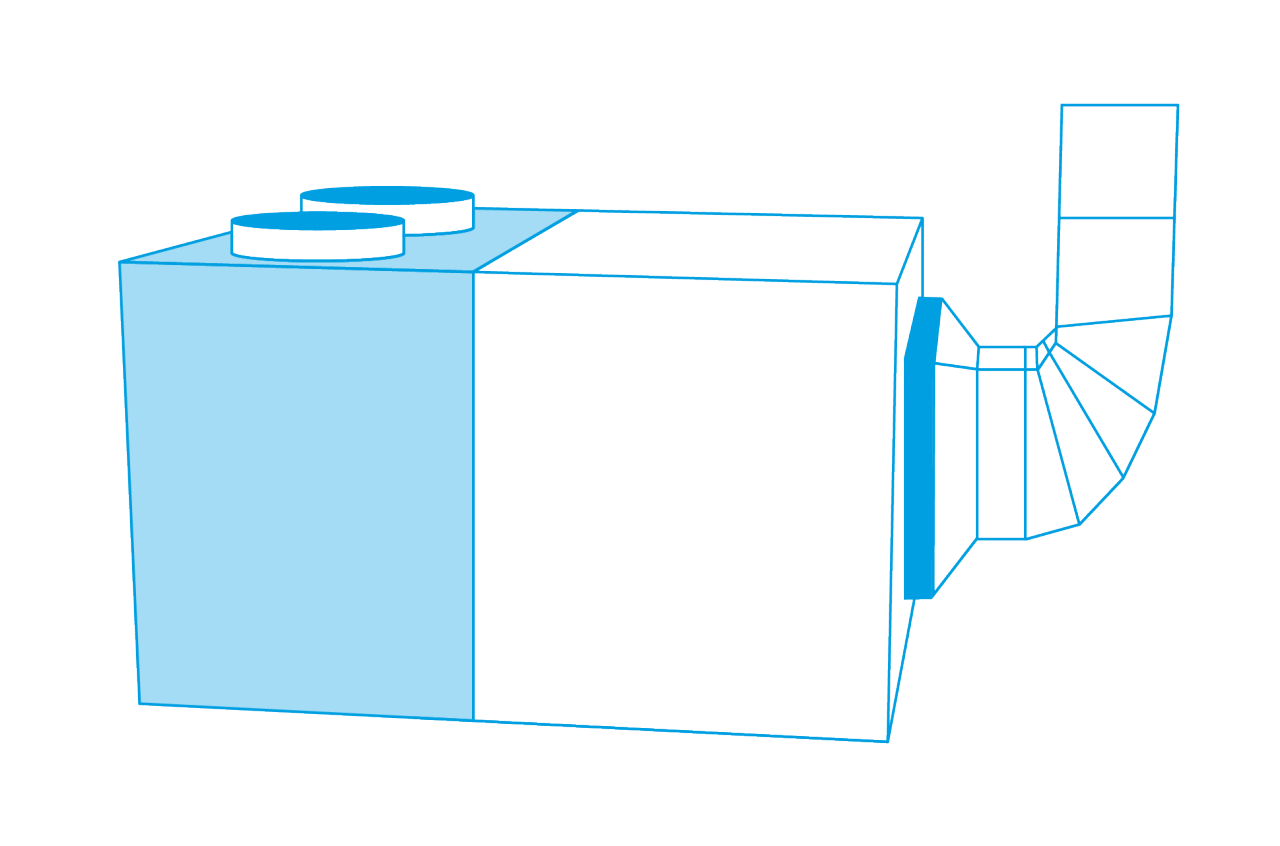

- Up to 4 possible sides can be selected on site (front, left, right, bottom)

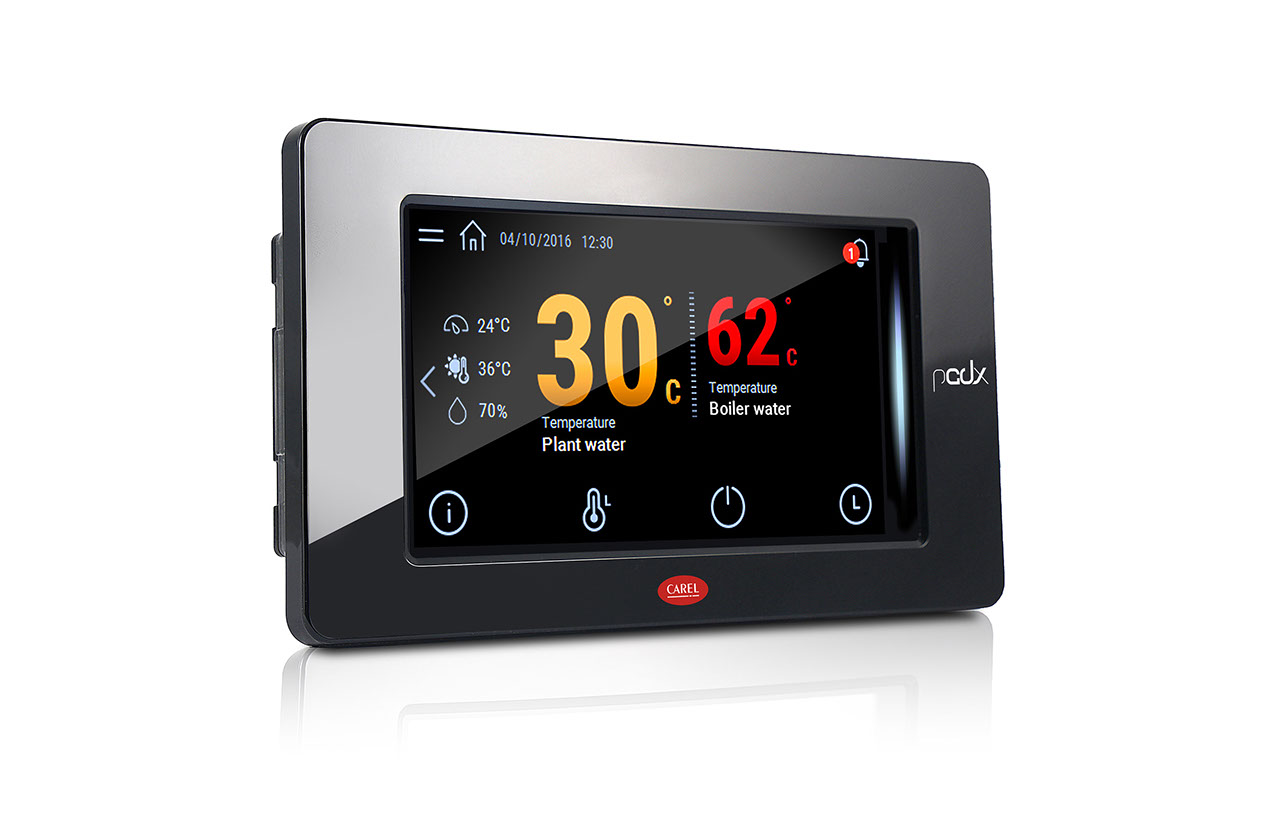

3. Latest pCO5 controller

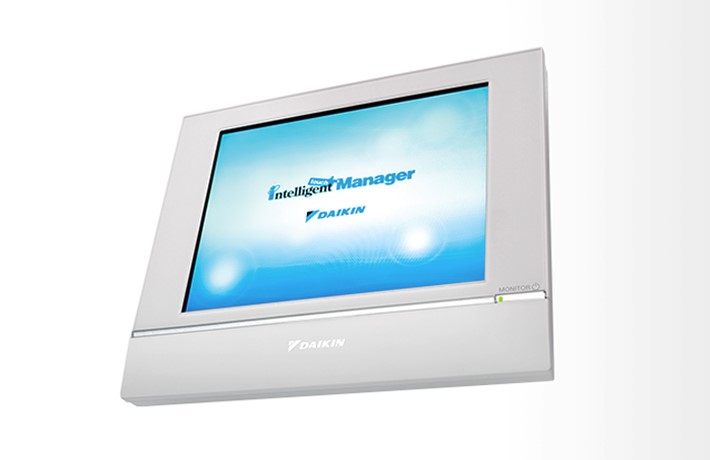

- Direct integration into Daikin intelligent Touch Manager BMS (via optional BACnet protocol)
- Easy integration in 3rd party BMS systems
- Standard Modbus protocol
- Optional BACnet protocol
4. Standard clogged filter alarm
- Indicates when a filter requires cleaning
- Improved indoor air quality and efficiency
5. Hydrophilic coated aluminium fins on indoor and outdoor side
Rooftop for Retail & Department Stores
Retail & department stores need challenging design because of limited space and complex building structure, containing different floors and spaces. Daikin rooftops provide the solution:
- Ductwork can be connected flexibly (front, left, right, bottom) to optimize installation space.
- High efficiency EC plug fans are maintenance free, limiting the downtime of the system for maintenance.
- Extraction damper and fan ensure there is no overpressure in the building and air circulation is optimised.
- High indoor air quality can be guaranteed thanks to integrated fresh air provision.
Rooftop for Warehouses & Industry
For building managers and engineers, warehouses or industrial applications can pose serious HVAC challenges because of their size and unique design. Daikin rooftops provide the solution:
- Pre-connected indoor/outdoor units and factory charged refrigerant provide cost-effective installation.
- High ESP up to 300Pa allows extensive ductwork to evenly distribute the air across a large space.
- Scroll compressor and free cooling ensure highly efficient 24/7 operation.
- Clogged filter alarm indicates when filter needs cleaning, ensuring optimum operation and minimized energy consumption.

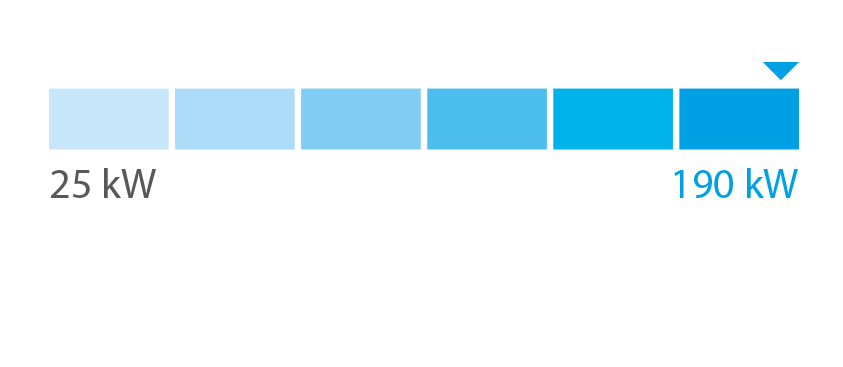

3 ranges to suit your needs
UATYQ-ABAY1
High installation flexibility and easy servicing
- Easy to install ‘plug and play’ concept plus single installation configuration; no additional piping is required since indoor and outdoor sides are pre-connected
- High efficiency and reliable scroll compressor
- Factory pre-charged refrigerant ensures clean and efficient operation
UATYQ-AFC2Y1
2 damper version, with integrated fresh air
- Free cooling with 100% fresh air possible
- Improved air quality
- Energy saving using fresh outdoor air to cool the building
- Standard CO2 sensor connection
- Ideal balance between efficiency and indoor air quality
- Includes all Base model features
UATYQ-AFC3Y1

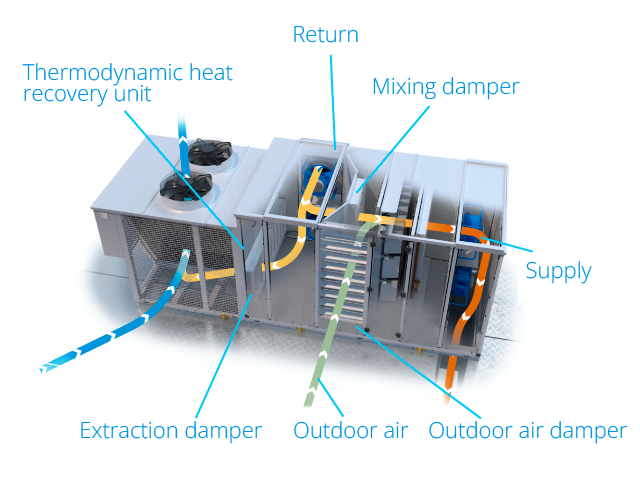

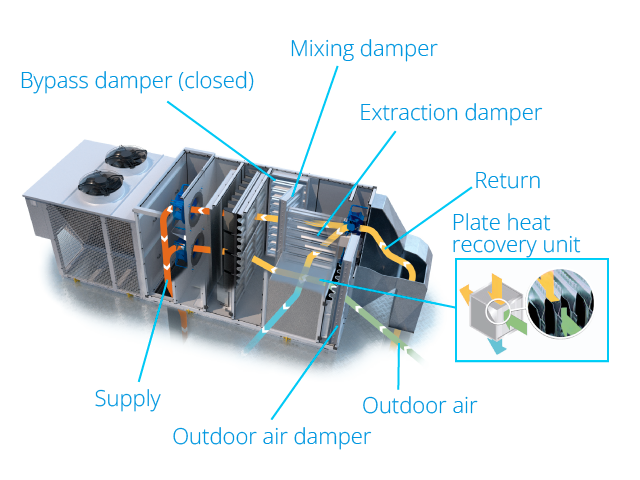

3 damper version, with integrated fresh air and extraction
- Extraction damper integrated
- Eliminates excessive overpressure in the building
- UATYQ45-115AFC3Y1 models include high efficient extraction fan for optimum air circulation in larger buildings
- Thermo dynamic heat recovery
- Saves energy by recovering waste heat through the outdoor heat exchanger
- Available on UATYQ20-55AFC3Y1
