Product Features
- Slimmest unit in class, only 245mm (300mm built-in height) and therefore narrow ceiling voids are no longer a challenge

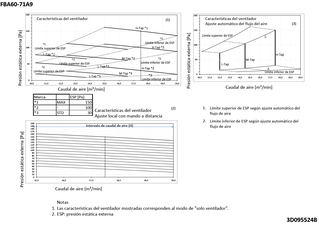

- Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
- Combining with R-32 Bluevolution technology, reduces environmental impact with 68% compared to R-410A, leads directly to lower energy consumption thanks to its high energy efficiency and has up to lower 16% refrigerant charge
- Possibility to change ESP via wired remote control allows optimisation of the supply air volume
- Discretely concealed in the ceiling: only the suction and discharge grilles are visible
- Low operation sound level down to 25dBA
- Unified indoor unit range for R-32 and R-410A
- Multi zoning kit allows multiple individually-controlled climate zones to be served by one indoor unit
- Reduced energy consumption thanks to specially developed DC fan motor
- Optional fresh air intake

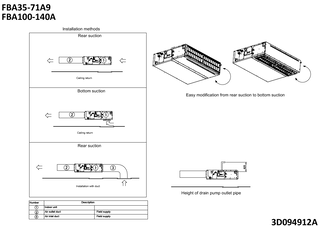

- Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use or connection to optional suction grilles
- Standard built-in drain pump with 625mm lift increases flexibility and installation speed
This unit can be used in combination with following unit(s)
- FBA-A(9) / 2MXM-A
- FBA-A(9) / 2MXM-N
- FBA-A(9) / 3MXM-A
- FBA-A(9) / 3MXM-A9
- FBA-A(9) / 3MXM-N
- FBA-A(9) / 3MXM-N7
- FBA-A(9) / 3MXM-N8
- FBA-A(9) / 3MXM-N9
- FBA-A(9) / 4MWXM-A
- FBA-A(9) / 4MWXM-A9
- FBA-A(9) / 4MXM-A
- FBA-A(9) / 4MXM-A9
- FBA-A(9) / 4MXM-N
- FBA-A(9) / 4MXM-N9
- FBA-A(9) / 5MWXM-A9
- FBA-A(9) / 5MXM-A
- FBA-A(9) / 5MXM-A9
- FBA-A(9) / 5MXM-N
- FBA-A(9) / 5MXM-N9
- FBA-A(9) / ARXM-N9
- FBA-A(9) / ARXM-R
- FBA-A(9) / AZAS-MV
- FBA-A(9) / AZAS-MV1
- FBA-A(9) / AZAS-MY
- FBA-A(9) / AZAS-MY1
- FBA-A(9) / RQ-BV3
- FBA-A(9) / RQ-BW1
- FBA-A(9) / RR-BV3
- FBA-A(9) / RR-BW1
- FBA-A(9) / RXM-A
- FBA-A(9) / RXM-A8
- FBA-A(9) / RXM-A9
- FBA-A(9) / RXM-N
- FBA-A(9) / RXM-N9
- FBA-A(9) / RXM-R
- FBA-A(9) / RXS-L
- FBA-A(9) / RZA-D
- FBA-A(9) / RZAG-A
- FBA-A(9) / RZAG-B
- FBA-A(9) / RZAG-MV1
- FBA-A(9) / RZAG-MY1
- FBA-A(9) / RZAG-NV1
- FBA-A(9) / RZAG-NY1
- FBA-A(9) / RZASG-MV
- FBA-A(9) / RZASG-MV1
- FBA-A(9) / RZASG-MY
- FBA-A(9) / RZASG-MY1
- FBA-A(9) / RZQ-C
- FBA-A(9) / RZQSG-L(8)Y1
- FBA-A(9) / RZQSG-L3/9V1
Benefits
-
Home leave operation
Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
-
Multi zoning (optional)
Allows up to 6 individual climate zones with one indoor unit
-
Onecta app (optional)
Control your indoor climate from any location via smartphone or tablet
-
Fan only
The unit can be used as fan, blowing air without heating or cooling.
-
Auto cooling-heating changeover
Automatically selects heating or cooling mode to achieve the set temperature.
-
Whisper quiet
Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
-
Fan speed steps (3 steps + auto)
Allows to select up to the given number of fan speed.
-
Dry programme
Allows humidity levels to be reduced without variations in room temperature.
-
Air filter
Removes airborne dust particles to ensure a steady supply of clean air.
-
Centralised control (optional)
Starts, stops and regulates several air conditioners from one central point.
-
Auto-restart
The unit restarts automatically at the original settings after power failure.
-
Infrastructure cooling
Remove in a reliable, efficient and flexible way the heat constantly generated by the IT and server equipment to ensure maximum uptime while offering the best return on investment.
-
Weekly timer (optional)
Can be set to start heating or cooling anytime on a daily or weekly basis.
-
Infrared remote control (optional)
Starts, stops and regulates the air conditioner from a distance.
-
Wired remote control (optional)
Starts, stops and regulates the air conditioner.
-
Self diagnosis
Simplifies maintenance by indicating system faults or operating anomalies.
-
Drain pump kit (standard)
Facilitates condensation draining from the indoor unit.
-
Twin/triple/double twin application
2,3 or 4 indoor units can be connected to only a single outdoor unit even if they have different capacities. All indoor units operate within the same heating or cooling mode from one remote control.
-
Multi model application
Up to 5 indoor units can be connected to a single outdoor unit, even if they have different capacities. All indoor units can individually be operated within the same heating or cooling mode.
-
VRV for residential application
Up to 9 indoor units (even different capacities and up to 71 class) can be connected to a single outdoor unit. All indoor units can individually be operated within the same mode.
